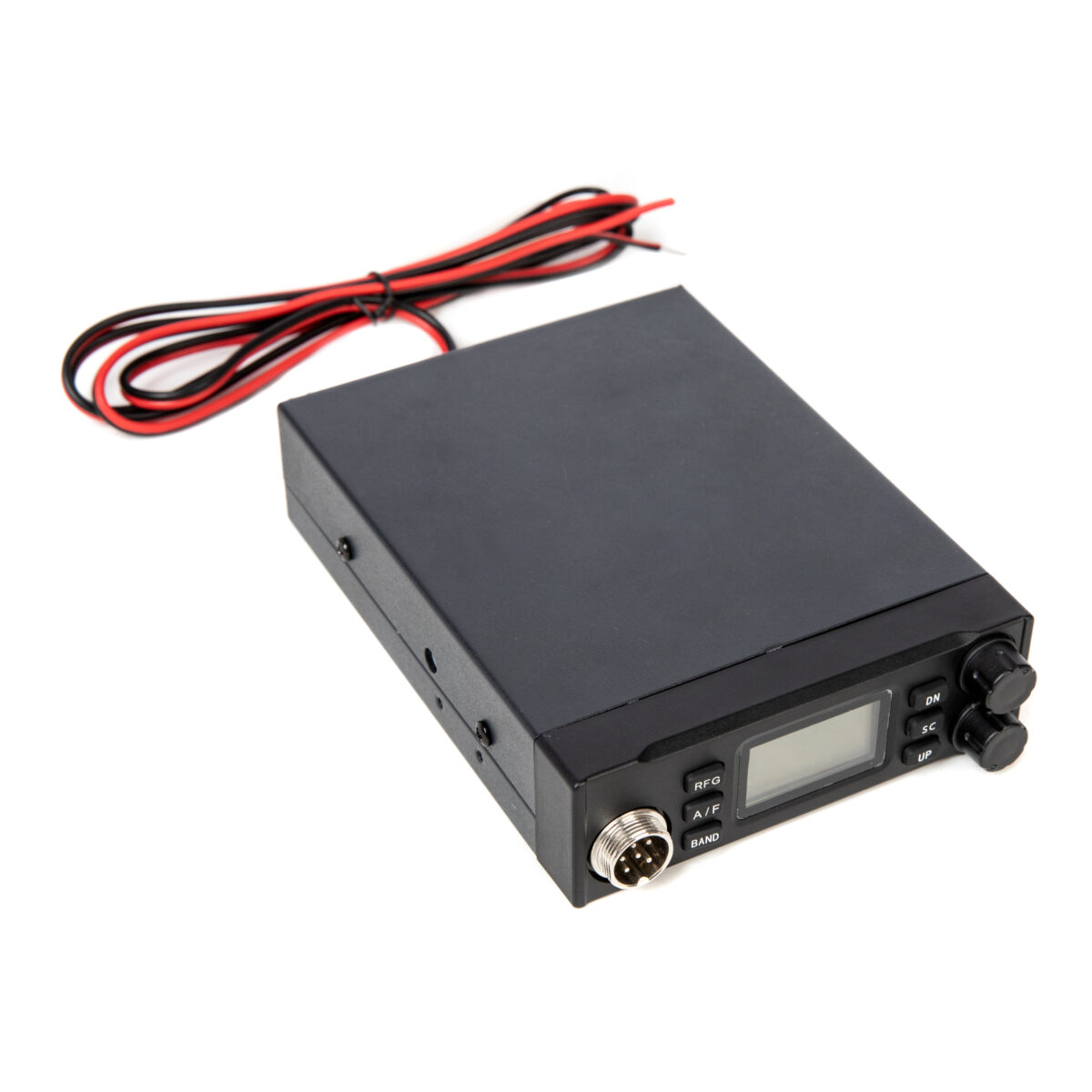

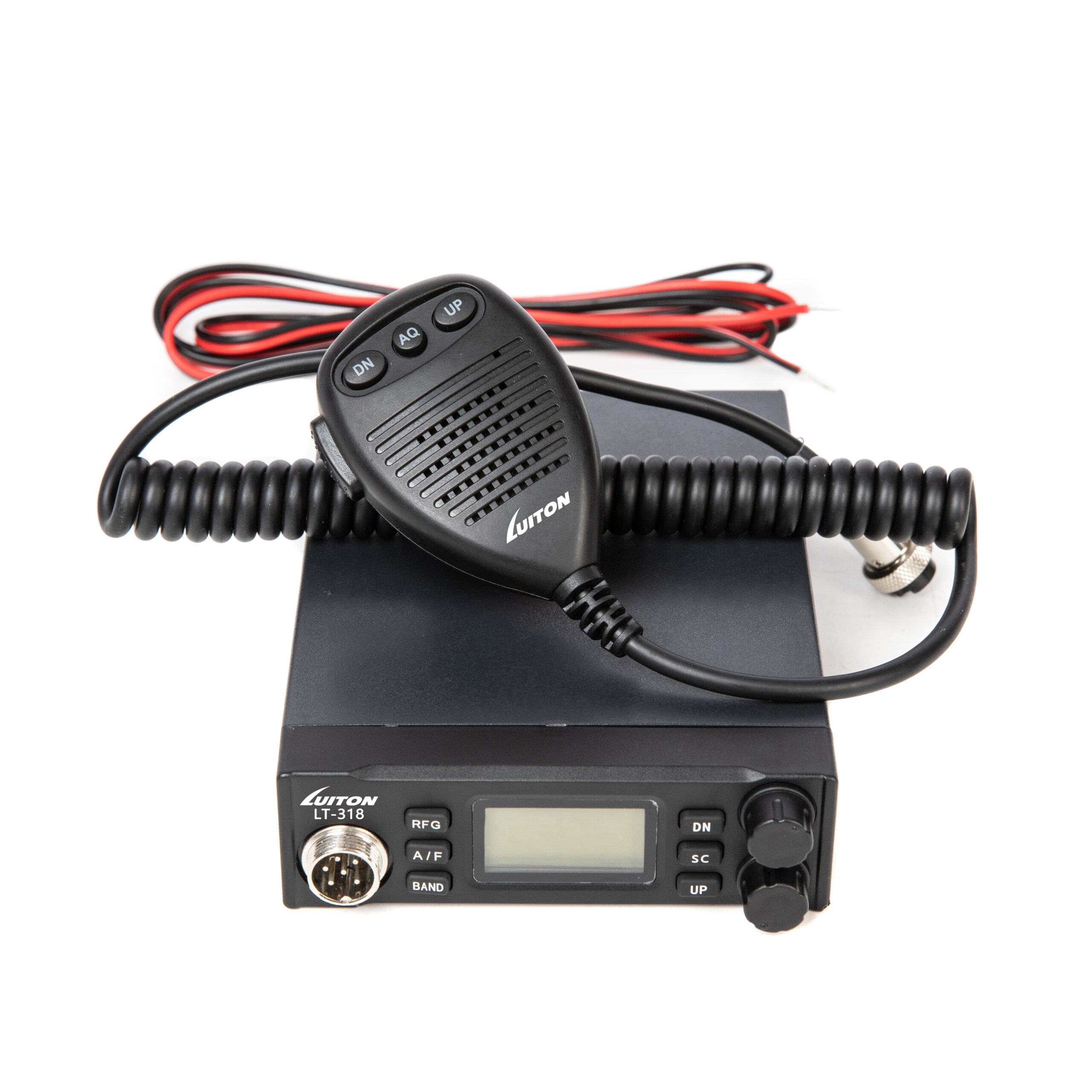

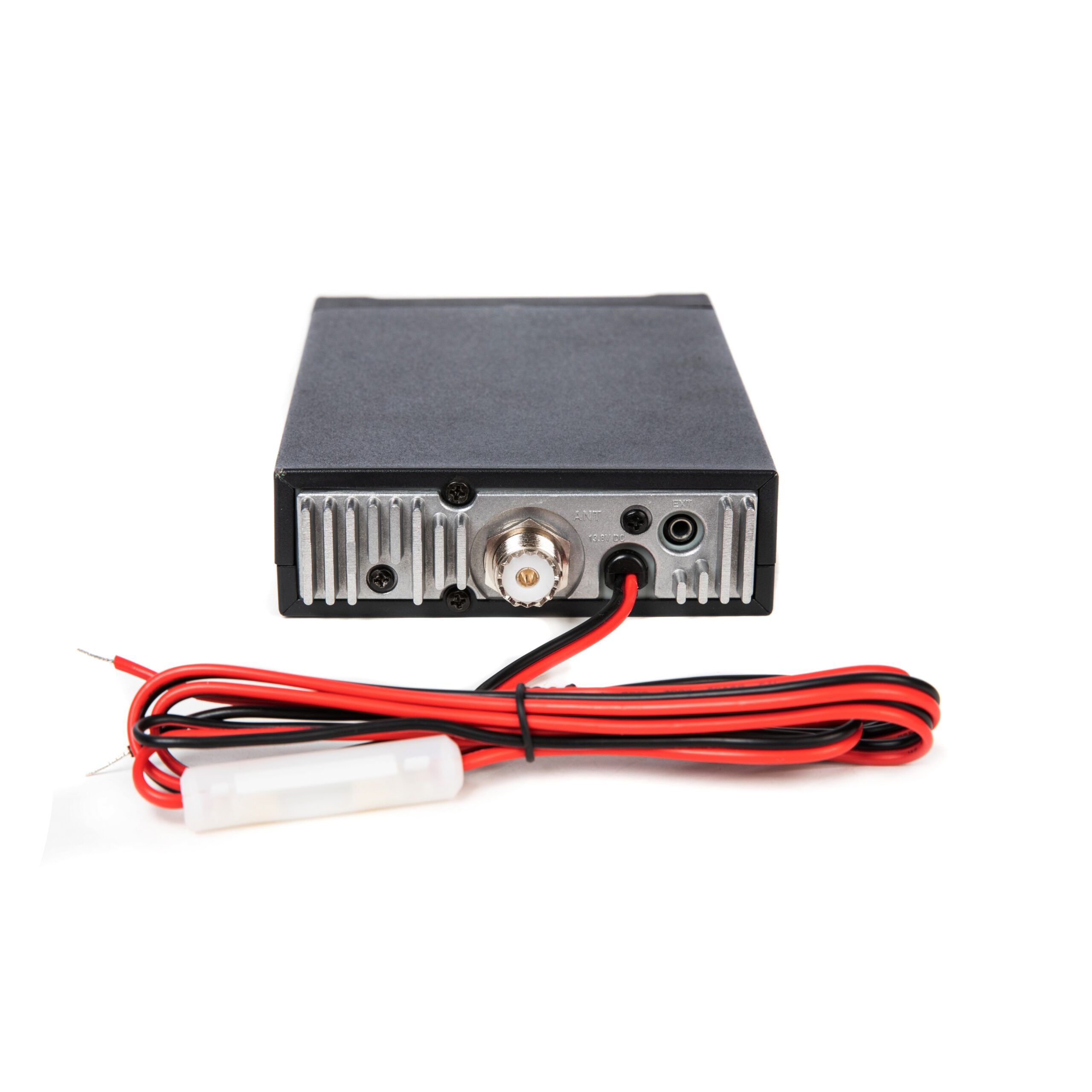

Product Description
TECHNICAL CHARACTERISTICS
| General | |
| Modulation modes | AM/FM |
| Frequency range | 26.965-27.405MHz |
| Antenna impedance | 50 Ohms |
| Power supply | 13.2V |
| Dimensions | 115(L)×38(A)×150(P)mm |
| Weight | 0.8kg |
| Transmission | |
| Frequency error | +/-300HZ |
| Carrier power | 1W/4W |
| Transmission interference | Inferior to 4nW(-54dBm) |
| Audio response | 300HZ to 3KHZ in AM/FM |
| Emitted power in the adj. channel | inferior to 20uW |
| Microphone sensitivity | 3mV |
| Maximum current | max 3A |
| Modulated single distortion | inferior ro 5% |
| Reception | |
| Max sensitivity at 20dB sinad | 0.8μV-113 dBm FM |
| 1.5μV-103 dBm AM | |
| Frequency response | 300HZ to 3KHZ in AM/FM |
| Adjacent channel selectivity | 60dB |
| Maximum audio power | 3W |
| Squelch sensitivity | Minimum 0.2μV -120dBm |
| Minimum 1mV -47dBm | |
| Maximum current | 0.3A nominal/1.2A maximum |
