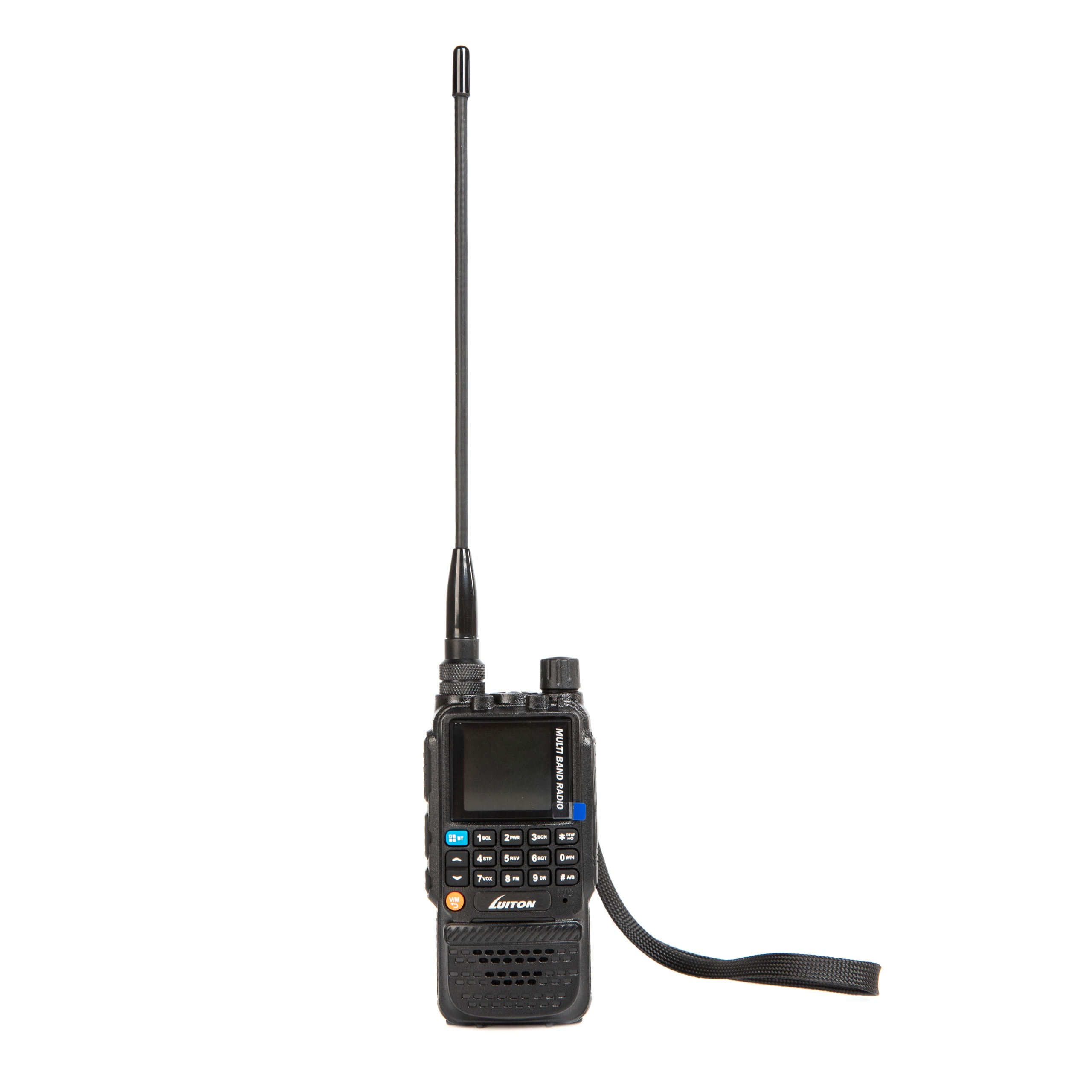

UV-N98 Professional FM Transceiver

UHF and VHF dual band UV-N98 amateur radio transceiver/two way radios

Main functions:

UHF+VHF DUAL BAND/DUAL DISPLAY/DUAL STANDBY

Option signaling (MSK, DTMF, 2-Tone, 5-Tone)

Remote halo/Remote death

CTCSS/DCS can be random programmed

With CTCSS/DCS scan

128 groups of memory channels

Built-in FM radio

VHF 5W/UHF 5W output power

Select Call, Group Call, Broadcast Call

UHF and VHF dual-frequency/double/double to wait

Support four kinds of optional signaling (MSK, DTMF, two – Tone / 5 – Tone)/remote dizzy/remote shoot function

CTCSS/DCS can be arbitrary to write;

Take CTCSS/DCS scan

128 groups of memory channel

Built-in FM radio

Output power: VHF5W/UHF5W

Selected calling, group calling, group calling

Technical specification

Frequency:                    VHF  136-174 MHz   245-246 MHz

UHF 400-480 MHz   350-390 MHz

465-520MHz

Frequency Stability        ±2.5ppm

Operating Voltage                 7.2VDC(Rechargeable lithium-ion battery type)

Channels                       2×128

Antenna Impedance       50

Way of working             with single frequency or frequency simplex

Volume                          110 x58x32mm (not including antenna)

Transmitter

Output power VHF (high/low)       5 W / 1 W UHF: 0.5 W / 4 W

Modulation method (broadband/narrowband) 16 k F3E / 11 k F3E

Maximum deviation (broadband/narrowband) ≤5KHz/≤2.5KHz

Stray power                 uW 7.5 or less

Emission current          ≤1.6A(5W

Audio and audio/digital and partial (broadband/narrowband) 0.5KHz±0.1KHz,0.4KHz±0.1KHz,

Modulation sensitivity   8-12 mv

Modulation distortion    < 5%

Receiver

Reference sensitivity      – 122 bm (12 dB SINAD)

Audio power                  1 w

Audio distortion            < 10%

Block 85 db or higher

Intermodulation (broadband/narrowband) ≥60dB     ≥55dB

Selective (broadband/adjacent-channel narrowband) ≥65dB     ≥60dB
