Overview
SpecificationsPlace of Origin:Fujian, China (Mainland)Brand Name:LUITON am fm ssb cb radioModel Number:LT-198 am fm ssb cb radioType:Vehicle Mouted, Vehicle Mouted am fm ssb cb radioDimensions:104mm*108mm*25mmFrequency Range:25.615 – 28.305 MHzStorage Channel:40 channelsTalk Range:10KMOEM service:YesOEM quantity:1000PCSColor:Black,OEMOutput Power:4WCategory:Walkie TalkieFeature:Dual watchScreen:YesWeight:416gItem:am fm ssb cb radio
Packaging & DeliveryPackaging Details:1) each am fm ssb cb radio into one color box;
2)10pcs am fm ssb cb radio into one export carton;
3) we accept clients’ specific requirement of am fm ssb cb radio;
2017 new arriva LT-198 am fm ssb cb radioDelivery Detail:According to am fm ssb cb radio ‘s order quantity
2017 new arriva LT-198 am fm ssb cb radio
- cb radio
- ssb cb radio
- am fm cb radio
Product Description

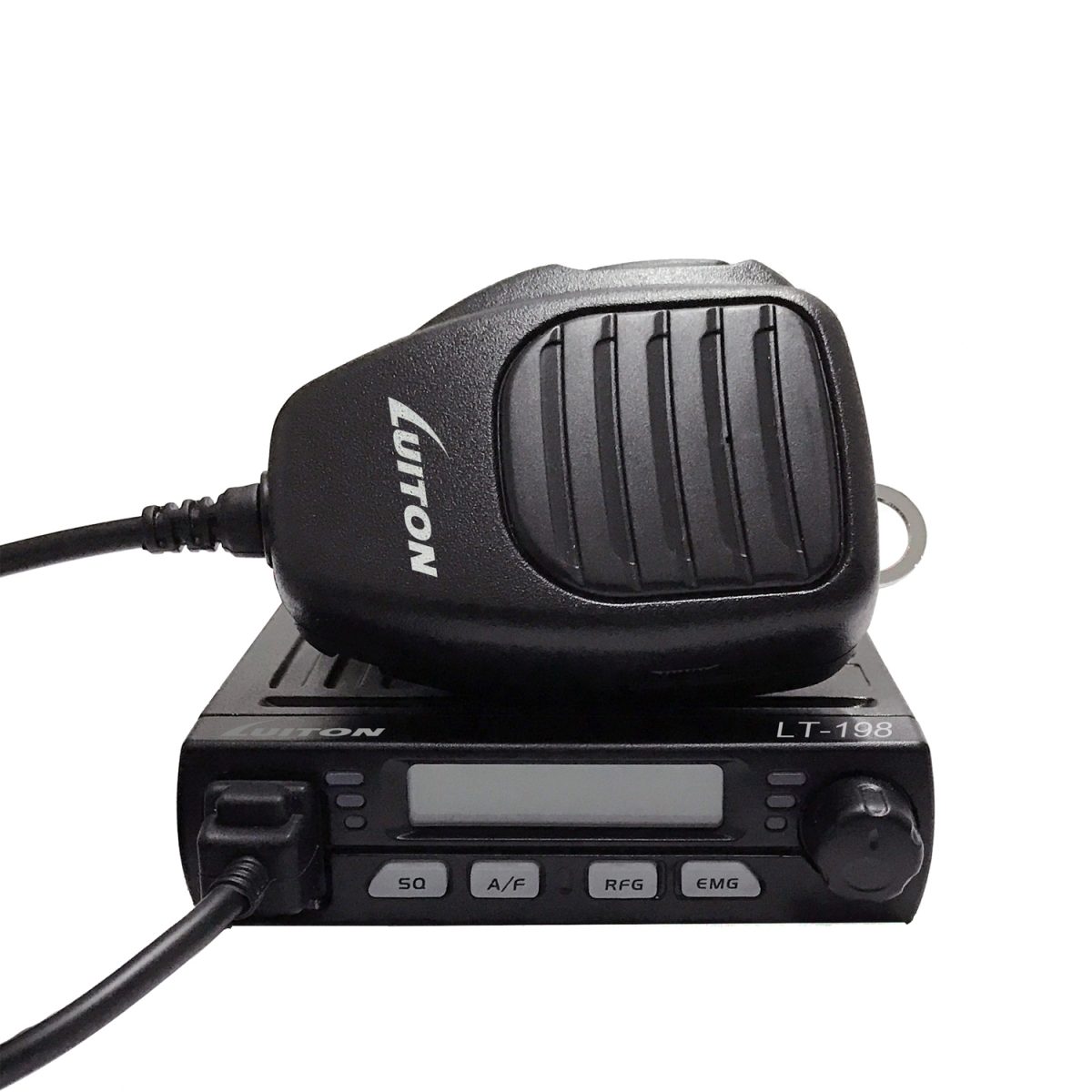

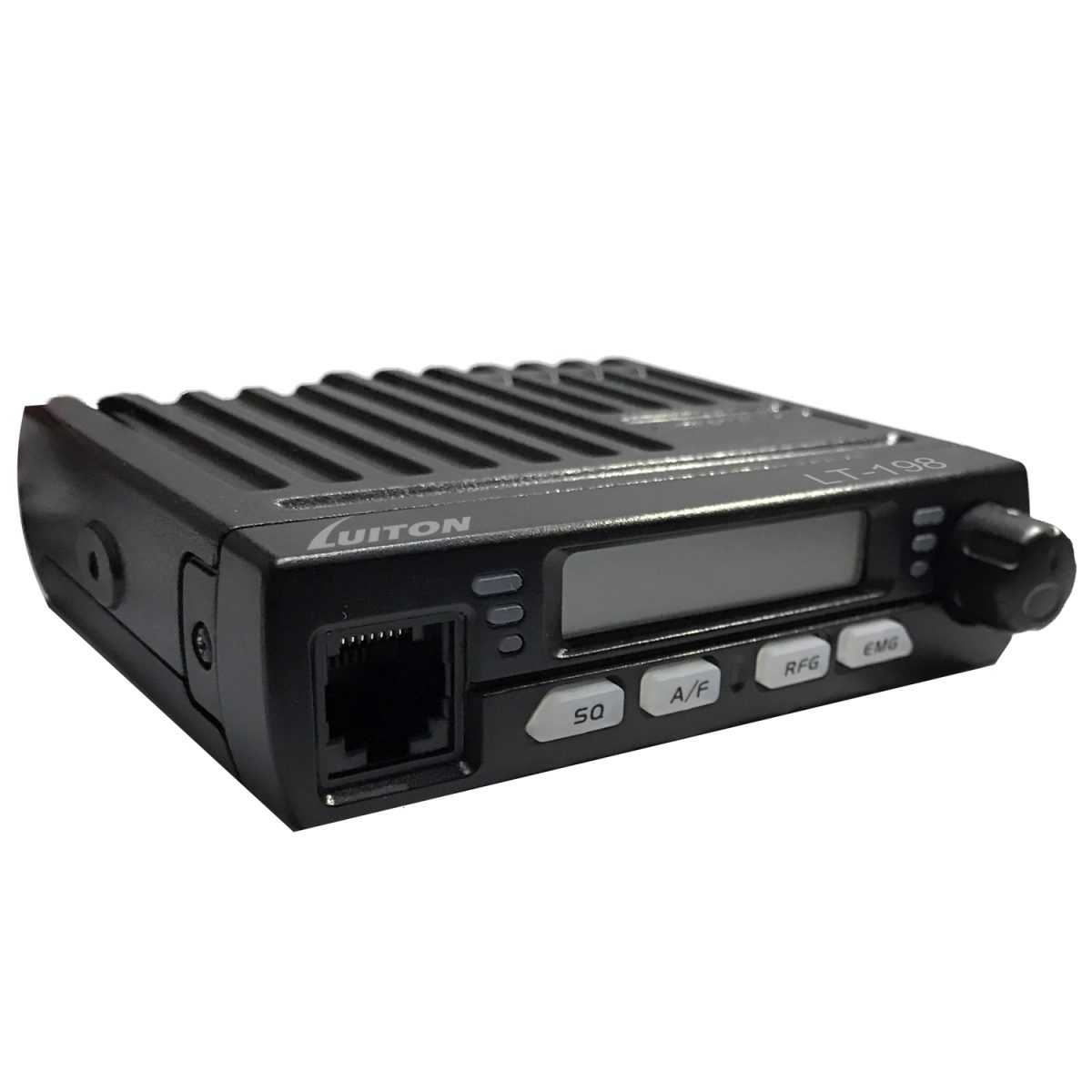

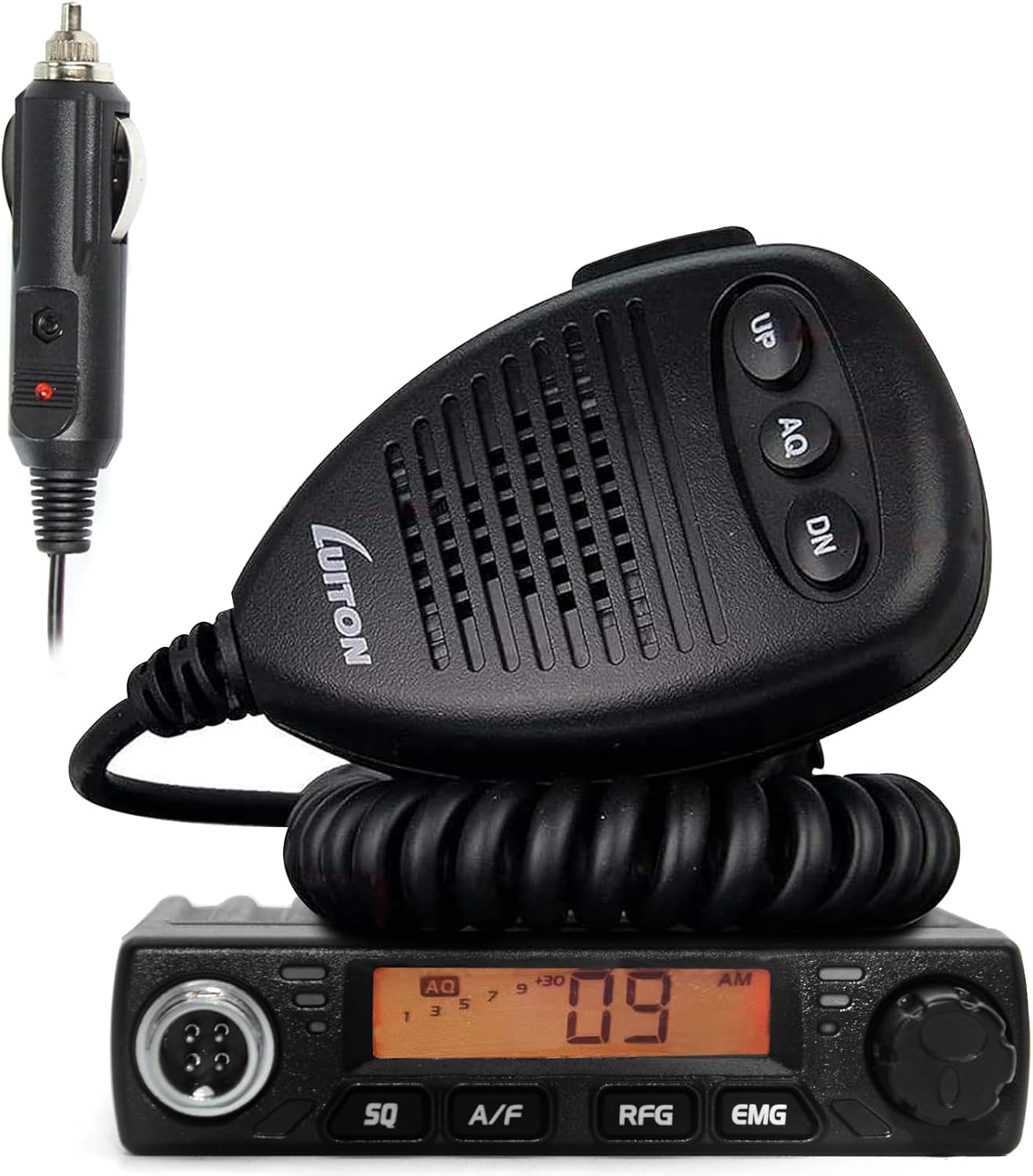

Features of LT-198 am fm ssb cb radio:
Microphone with LCD
Squelch control
RF Gain control
AM/FM mode
ASQ/SQ function
3-colors backlight
Dual watch
EMG channel CH9/19
Specifications of LT-198 am fm ssb cb radio:
| General | |
| Modulation Mode | AM/FM |
| Frequency Range | 25.565– 27.99125MHz |
| Frequency Control | P.L.L. |
| Frequency Tolerance | ±5.0ppm |
| Operating Temperature | -20°/+50°C |
| DC Input Voltage | 13.2V |
| Dimensions (H × W × D) | 104mm×108mm×25mm |
| Weight | 416g |
| Antenna Connector | UHF,SO-239 |
| Current drain | Transmit: 2A MAX |
| Receive: Squelched 0.3A | |
| VOL Max: 0.8A | |
| Transmitter | |
| Power Output | 4 Watt AM/FM |
| Transmission Interference | inferior to 4nW(-54dbm) |
| Frequency Response | 300-3000Hz |
| Modulation Signal Distortion | inferior to 5% |
| Output Impedance | 50 ohms |
| Receiver | |
| Sensitivity | Less than 1uV for 10dB(S+N)/N |
| Image Rejection | 70dB |
| Adjacent Channel Rejection | 60dB |
| IF Frequencies | 1st 10.695MHz |
| AGC | 2nd 455KHz |
| Less than 10dB change in audio | |
| Squelch | Output for inputs from 10 to 50000uV |
| Less than 1uV | |
| Audio Output Power | 1 Watt |
| Frequency Response | 300-3000Hz |
