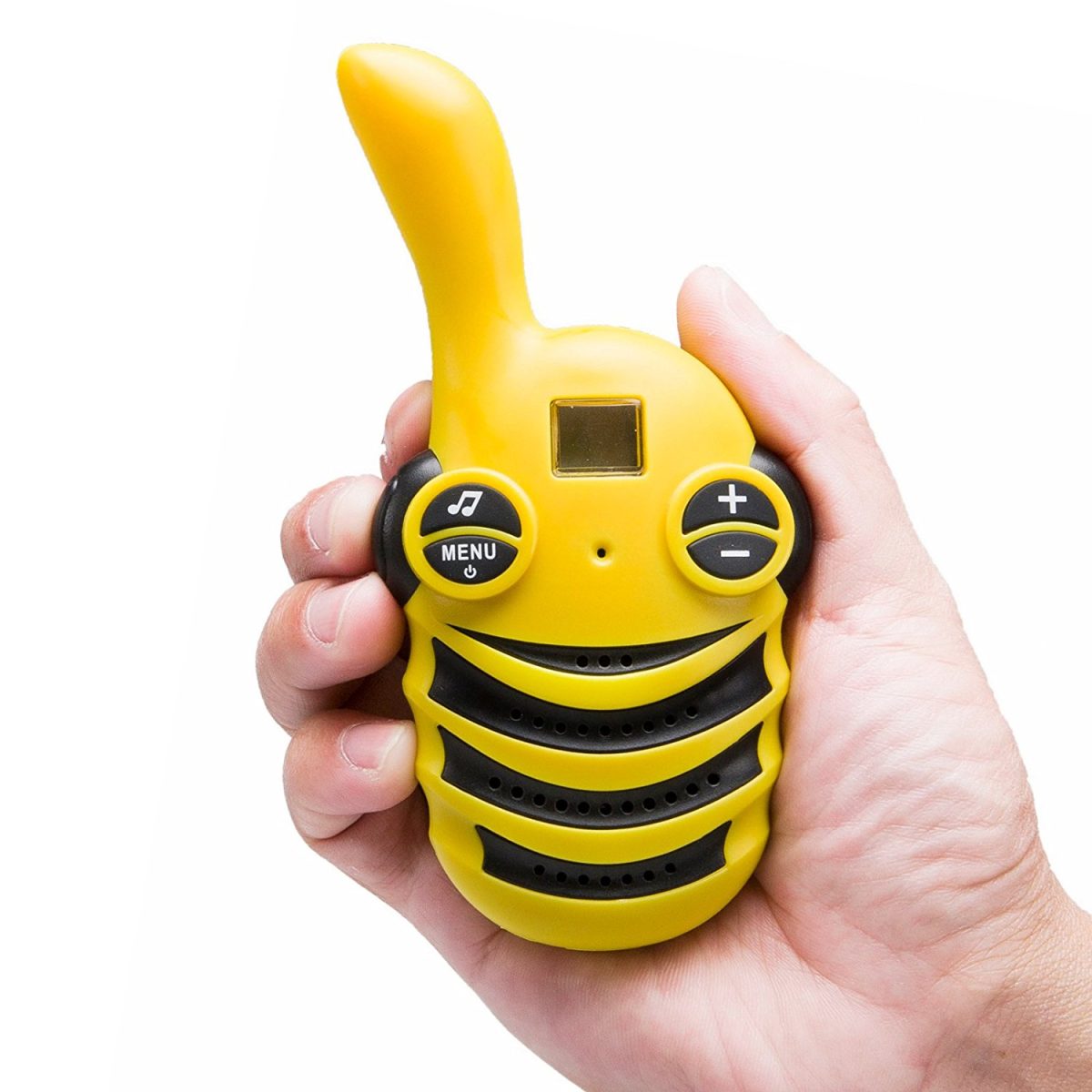

Luiton A8 PMR FRS kids walkie talkie

    Function:

    • LUITON 0.5w PMR FRS kids walkie talkie
    • Frequency range:467.5125MHz-467.675MHz(14 channels)
    • US FRS:462.5625-467.7125MHz(14channels)
    • EU PMR+FRS:446.00625-467.7125(22 channels)
    • 14 channels
    • 1W output power
    • 38 groups of CTCSS
    • 5 call tone selectable
    • VOX function
    • Monitor function
    • Key lock Function

    Product Description

    Features:  LUITON 0.5w PMR FRS kids walkie talkie

    1. Frequency range:467.5125MHz-467.675MHz(14 channels)
    2. US FRS:462.5625-467.7125MHz(14channels)
    3. EU PMR+FRS:446.00625-467.7125(22 channels)
    4. 14 channels
    5. 1W output power
    6. 38 groups of CTCSS
    7. 5 call tone selectable
    8. VOX function
    9. Monitor function
    10. Key lock Function

    Technical Specifications: LUITON 0.5w PMR FRS kids walkie talkie

    General
    Rated voltageDC3.6V-4.5V
    Modulation modeFM modulation
    Intermediate frequencyThe first intermediate frequency:21.7MHz
    The second intermediate frequency:450MHz
    Total power consumption1W
    Transmitter
    Power OutputMax 100Mw 4.5DC
    Frequency Error0.00025%
    Current ConsumptionTransmitting < 450mA
    Receiving< 150mA
    Standby< 45mA
    Receiver
    Sensitivity for 12dB-118dBm
    Audio Output0.25W 8 OHM(5% distortion)
    Audio Response range300-3200Hz

    Luiton A8 PMR FRS kids walkie talkie
