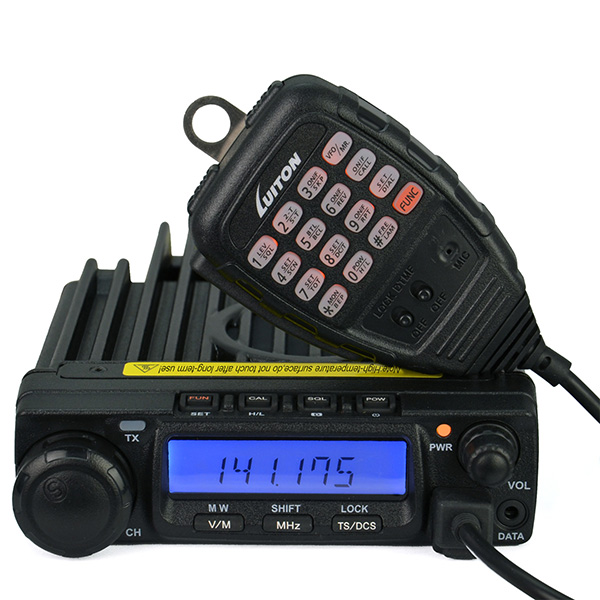

LT-590 VHF Mobile Radio

Function:
Output Power:60W(VHF)
200programmable memorized channels+Call channel, the channels can be marked with letters and digits
CTCSS/DCS/DTMF/ 2Tone/5Tone decodes and encodes
Four different single-tone pulse frequencies
CTCSS/DCS scan
Compander to reduce noise
Theft alarm
ANI function(DTMF/ANI,5Tone/ANI) PTT ID.
QHM-03 multifunctional microphone with DTMF
Scramble function(option)

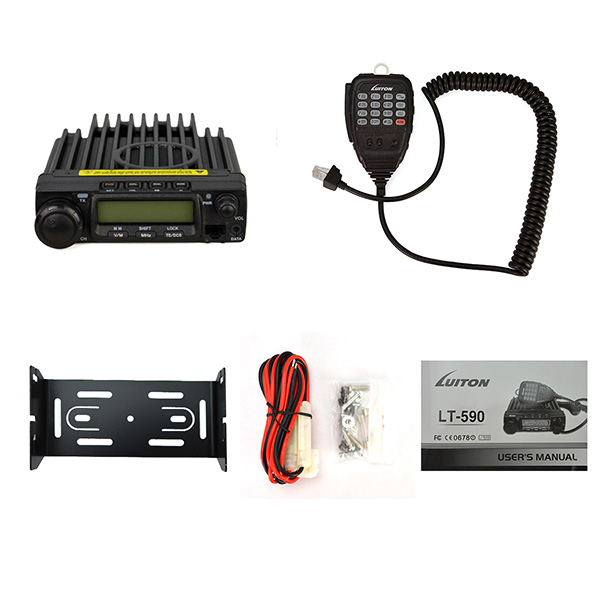

Accessories:
Microphone(with DTMF keypad)
Mobile installing bracket
DC power cable with fuse holder
Hardware kits for bracket
Desktop Mic(Option)
General
Frequency Range:VHF: 136-174MHz
Number of Channels: 200 channels
Channel Spacing:25K (Wide Band)
Phase-locked Step:5KHz,6.25KHz,8.33KHz,10KHz,12.5KHz,15KHz, 20KHz,25KHz,30KHz,50KHz
Operating Voltage:13.8V DC ±15%
Squelch:Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability:±2.5ppm
Operating Temperature:-20°C~+60°C
Dimensions(WxHxD):145 (W) x 47 (H) x 190 (L)mm
Weight:about 1.2Kg
Receiver (ETSI EN 300 086 standard testing )
Sensitivity (12dB Sinad): ≤0.25μV
Adjacent Channel Selectivity: ≥70dB
Intermodulation: ≥65dB
Spurious Rejection: ≥70dB
Audio Response: +1~-3dB(0.3~3KHz)
Hum & Noise: ≥45dB
Audio distortion: ≤5%
Audio power output: ≥2W@10%
Transmitter (ETSI EN 300 086 standard testing )
Power Output: 60W/25W/10W(VHF)
Modulation: 16KΦF3E
Adjacent Channel Power: ≥70dB
Hum & Noise: ≥40dB
Spurious Emission: ≥60dB
Audio Response: +1~-3dB(0.3~3KHz)
Audio Distortion: ≤5%
