Product Description

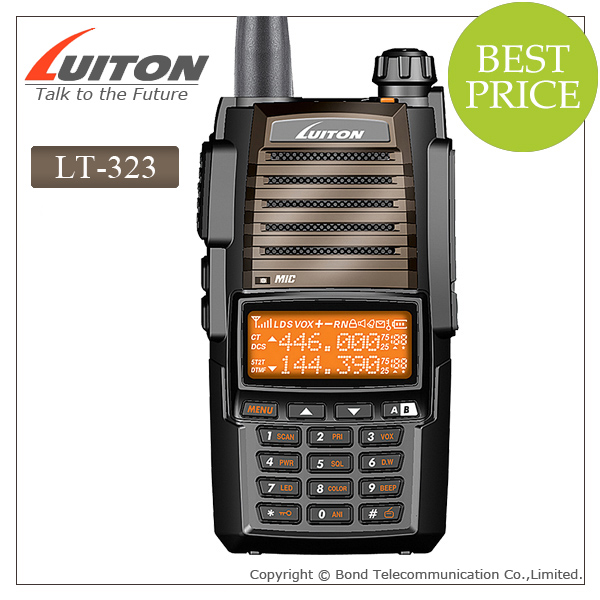

Features of LUITON LT-323 dual band ham radio equipment :
- FM radio, wide frequency display
- 136 Mhz~174Mhz and 400 Mhz~520Mhz
- U-V ,U-U, V-V modes
- DTMF/ANI
- 12.5KHz/25KHz selectable
- Humanized menu
- Standard & nonstandard CTCSS available
- Selected call, single call, group call; remote kill, stun, activate & revive
- High/Low Power Switchable
- Monitor, VOX
- Auto Battery Save
- Low Battery Alert
- Busy Channel Lockout
- CTCSS-50/CDCSS-105
- TOT (Time-out timer)
- ending sound silence
- squelch level 0-9 adjustable
- Priority Channel Scan
- Different Frequency Function
- PC Programmable
Technical Specifications of LUITON LT-323 dual band ham radio equipment :
| General | |
| Frequency Range | 136-174MHz |
| 400-470MHz | |
| 450-520MHz | |
| Channel No. | 99 |
| Channel Spacing | 12.5/25KHz |
| Voltage | 7.5V |
| Battery | 1250mAh(Li-Ion) |
| Frequency Stabilization | ±2.5ppm |
| Operating Temperature Range | -20°C~+55°C |
| Antenna Impedance | 50Ω |
| Dimensions(H*W*D) | 255mm(H)× 60mm(W)× 38 mm(D) |
| Weight(including antenna, battery) | 240g |
| Distances | 2~15km |
| Transmitter | |
| RF Power Output | 5W |
| Modulation Type | F3E |
| Spuirous and Harmonic | ≤ -60dB |
| Residual Radiation | ≤ -40dB |
| Modulation Distortion | ≤5% |
| Maximum Frequency Deviation | ±5KHz |
| Receiver | |
| Sensitivity | ≤0.2µV |
| Modulatioin Band | ±5KHz |
| Adjacent Channel Selectivity | ≥60dB |
| Intermodulation Anti-interference | ≥60dB |
| Spurious Response Rejection | ≥60dB |
| Rated Audio Output Power | ≥500mW |
| Rated Audio Distortion | ≤5% |
