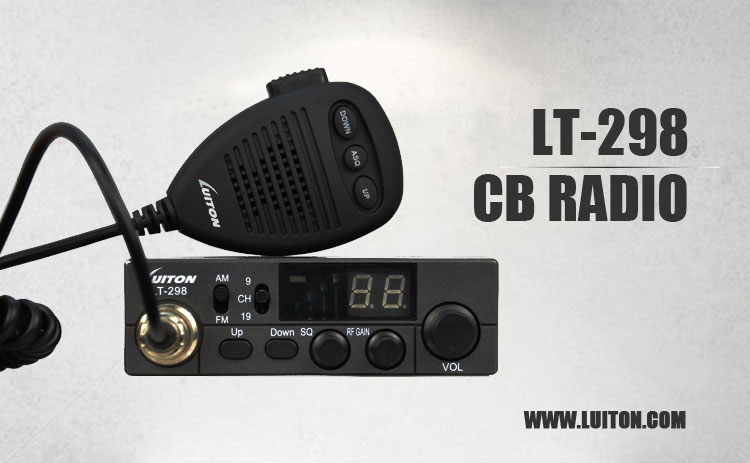

LT-298 27mhz cb radio

    LT-298 27mhz cb radio

    Categories:

    Function:

    Product Description

    Product Description

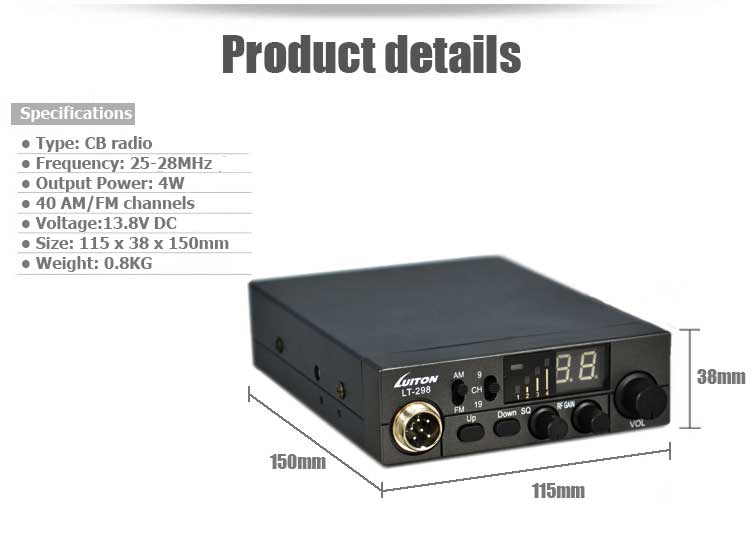

    LT-298 27mhz cb radioLT-298 lt-298-1 LT-298-2 LT-298-3 LT-298-4 LT-298-5 lt-298-6 lt-298 27mhz cb radioGENERALChannels40 AM/FMFrequency range25.615 – 28.305 MHzFrequency controlP.L.L.Operating temperature-10°/+55°CDC input voltage13.8Vdc ±15%Size115 (L) x 38 (A) x 150 (P) mmWeight0.8 kgRECEIVERSystemCPU controlled Double conversion superIF1° 10.7 MHz / 2° 450 KHzSensitivity-120dBm for 12dB SINAD (FM)-107dBm for 12dB SINAD (AM)Audio output@10% THD 2.5W at 8 ohmAudio distortion<8% at 1 KHzImage rejection65dBAdjacent channel85dBSignal ise ratio45dBCurrent drain220mA (stand-by)TRANSMITTERSystemCPU controlled P.L.L. synthesizerMaximum RF power4W at 13.8VdcModulation85% to 90% (AM)                                   1.8 KHz ±0.2 KHz (FM)ANT impedance50 ohm unbalancedCurrent drain1000mA (at no modulation) MORE CB radio

    LT-298 27mhz cb radio
