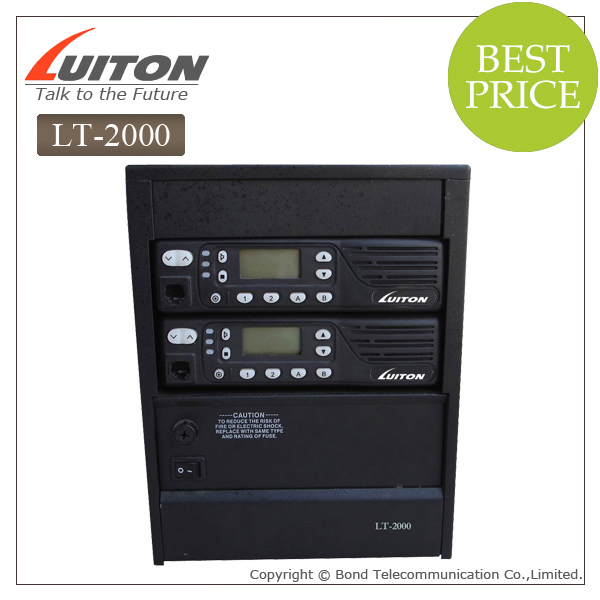

LT-2000 vhf uhf wireless repeater transceiver

      LT-2000 vhf uhf wireless repeater transceiver

      Categories:

      Function:

      Product Description

      SPECIFICATIONS

      General
      BANDLT-2000U/LT-2000V
      Frequency range400-470MHz/136-174MHz   20MHz expand
      Channel number64/99 channels
      Channel space25KHz
      Compatible temperature-25°C—60°C
      Power voltage13.8V DC cathode grounded
      Size44*168*160mm
      Transmitter
      Transmitting power20W
      Frequency stability±3ppm
      Modulated mode16k@F3E
      Spurious radiation≤-70dB
      FM noise≤-40dB
      FM distortion≤5%
      Max frequency deviation≤±5KHz
      Channel frequency expand20MHz
      Receiver
      Frequency stability±3ppm
      SensitivityBetter than 0.25µV
      Receiving modulated bandwidth≥±7KHz
      Adjacent channel sensitivity≥70dB
      Inter-modulation rejection≥65dB
      Spurious response rejection≥65dB
      Audio output power1W
      Channel frequency expand20MHz

      LT-2000 vhf uhf wireless repeater transceiver
