Product Description

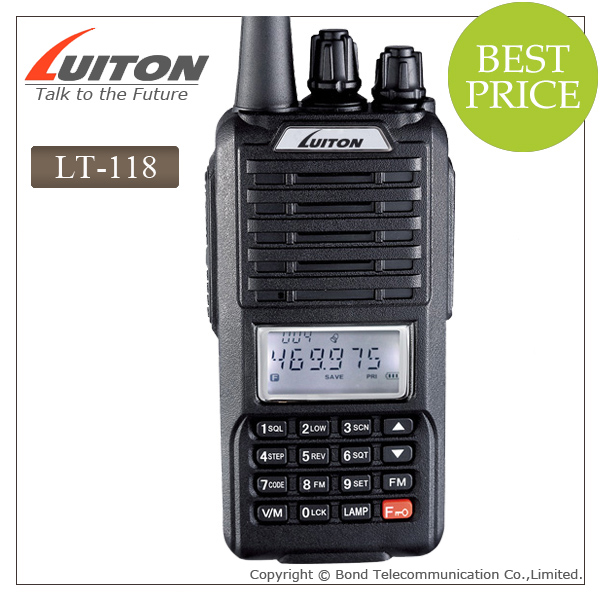

Features of FM vhf uhf walkie talkie LT-118 with 128 channels :
1. Frequency : VHF136-174MHz/ UHF 400-470MHz Radio Walkie Talkie
2. Channels: 128
3. Output power: 5W; 1300mAh Li-Ion battery
4. VOX Hands-Free Function
5. 3 Kinds of working modes: Frequency Mode, Channel Mode, Menu Mode
6. Monitor Function
7. FM Radio Function
8. Urgent Alarm Function, transmitting 60Hz frequency, the calling time lasts for 4s.
9. Channel Step: 12.5/25KHz
10. Offset frequency edition
11. Privacy Security Code edition, let the communication safety.
12. Scan Function (scanner)
13. Manual programmable & PC programmable
Technical Specifications of FM vhf uhf walkie talkie LT-118 with 128 channels :
| GENERAL | |
| Frequency Range | VHF136-174MHz |
| UHF400-470MHz | |
| Rated Voltage | DC 7.4V |
| Memory Channel | 128 |
| Channel Spacing | 12.5/25KHz,optional |
| Frequency Sensitivity | ±2.5PPM |
| weight | 205g |
| Antenna Impedance | 50Ω |
| Dimension | 109*54*31mm(excluding antenna) |
| TRANSMITTER | |
| Output Power | MAX 5W |
| Current | ≤1.5A |
| Modulation Distortion | <5%(300-3000HZ) |
| Maximum Frequency Deviation | ≤5KHZ |
| CTCSS Frequency Deviation | 0.75KHz±50Hz |
| Spurious Radiation | ≤-60DB W |
| Modulation Mode | F3E |
| Remanent Radiation | ≤-35dB |
| RECEIVER | |
| RF Sensitivity | ≤0.20uV |
| Silent Sensitivity | ≤0.2uV |
| Audio Frequency Power | 400mW |
| Audio Distortion | <5% |
| Spurious Rejection | ≥65/70dB |
| Selectivity | ≥60/70dB |
| Intermodulation | ≥60dB |
