Product Description
https://youtube.com/watch?v=Rb3X06JxgCw%3Fhtml5%3D1

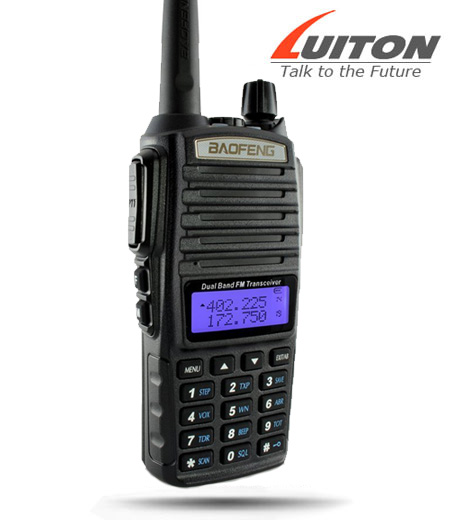

Dual band radio UV-82, Dual frequency,
Dual display, Dual standby baofeng two way radio
1. Large “LCD” display
2. DTMF encode
3. Li-ion battery pack with 1800mAh high capacity
4. FM Radio (65MHz-108MHz)
5. 105 DCS 50 CTCSS
6. Alarm function
7. VOX available
8. Frequency Step: 2.5/5/6.25/10/12.5/25 KHz
9. Battery Save
10. Time out timer
11. PC programmable
12. Flash light illumination
Dual band radio UV-82 spec
| GENERAL | |
| Frequency range | 136-174MHZ&400-520MHZ |
| Memory channels | 128 channels |
| Bandwidth | Wide:25kHz;Narrow 12.5kHz |
| Frequency step | 2.5/5/6.25/10/12.5/20/25kHz |
| Operating voltage | 7.4V |
| Battery capacity | 1800mAh |
| Operate temperature range | –20°C-+60°C |
| Weight | 206g |
| Dimensions | 130*60*35mm |
| TRANSMITTER | |
| RF output power | H 5W/L 1W |
| Modulation | F3E |
| Spurious emission | 65dB |
| FM noise | 45dB(W)/42dB(N) |
| Audio distortion | ≤5% |
| Transmitting current | <1.3A |
| RECEIVER | |
| Sensitivity(12dB SINAD) | ≤0.20 uV |
| Selectivity | Wide:60 DB;Narrow:55dB |
| Intermodulation | ≥65dB |
| Adjacent channel sleectvity | ≥65dB |
| Spurious response | ≥60dB |
| FM noise | 45dB(W)/42dB(N) |
| Audio power output | 1000mW |
| Audio distortion | ≤5% |
more baofeng radio
