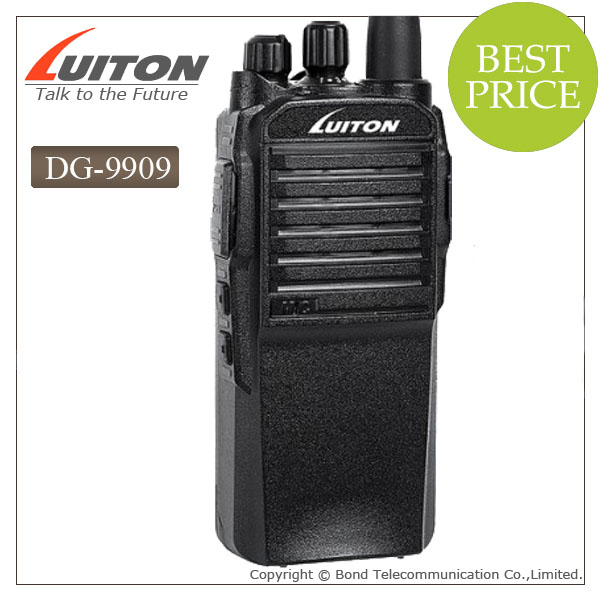

DG-9909 DPMR Digital radio

Features:
Vocoder: AMBE+2C
DPMR digital standard
Frequency range: 400-470MHz
16 Channels
Output power: 5W
Rechargeable Li-ion battery 1800mAh
SQL
ANI function
Doze Alarm
Man-down Alarm
Scrambler
VOX Function
High performance DSP Compander
Remote Stun, Kill function
Compatible Remote control for PTT and speaker

Specification:
General
Frequency:400.000MHz-470.000MHz
Channels:16 channels
Channel spacing Digital:6.25KHz
Analog:25/12.5KHz
Size:132MM*63MM*40MM
Operating Temperature:-10°C — +55°C
Power Voltage:7.4V
Standby current:About 35mA
Weight: About300g

Transmitter
RF power output 7.4V:HI≈4W±1dB LO≈1W
TX current:HI≤1.6A LO≤0.80A
Maximum frequency Deviation:Wide band ±5.0/Narrow band 2.5KHz
Harmonic:<-65dB Adjacent channel selectivity:Wide band 60dB/Narrow band 65dB Receiver Sensitivity:<0.25uV (12dB, SINAD) SQ sensitivity:<0.16uV Intermodulatioin rejection:50dB Audio power:≥800mW Receiving Current:≤300mA Dimension:132*63*40mm
