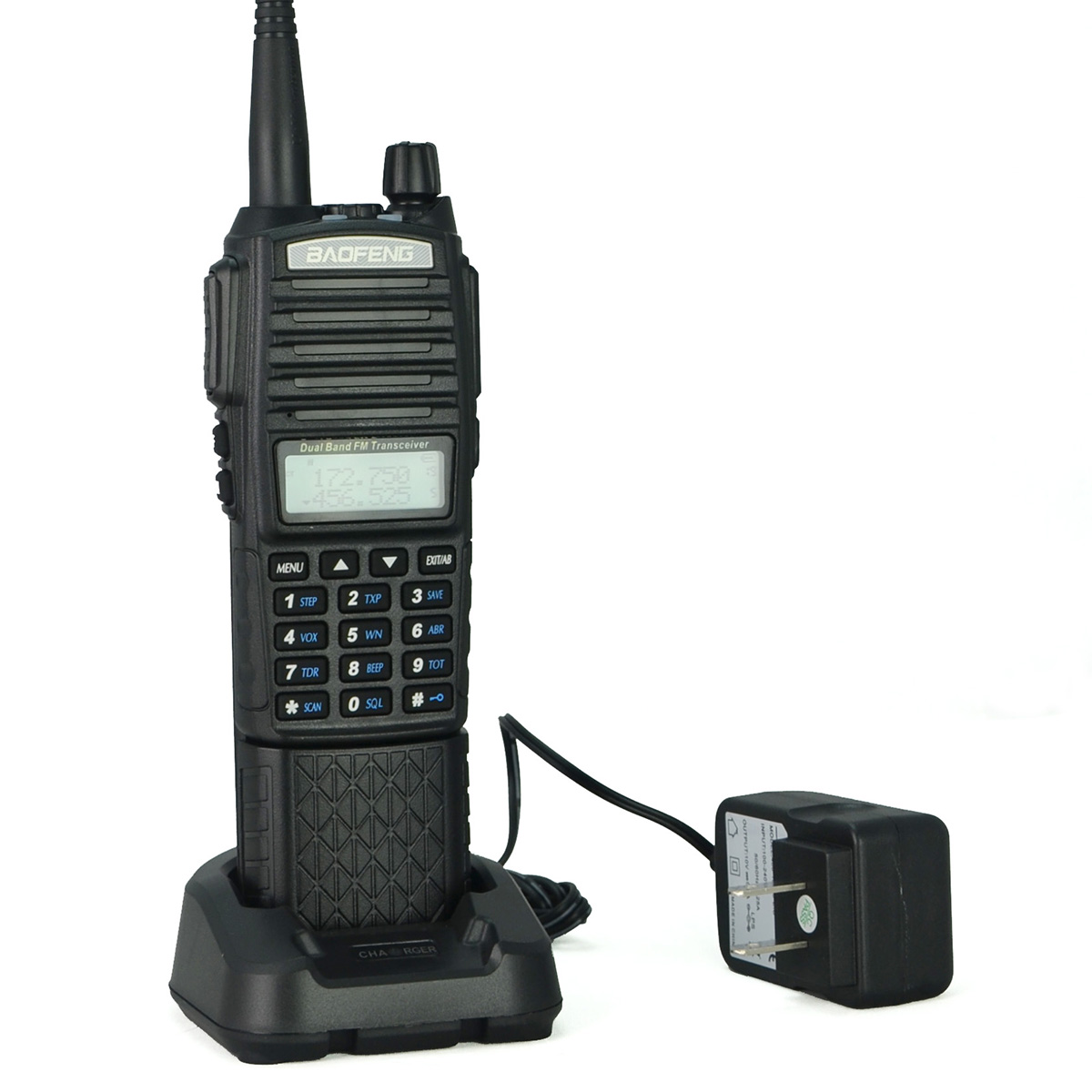

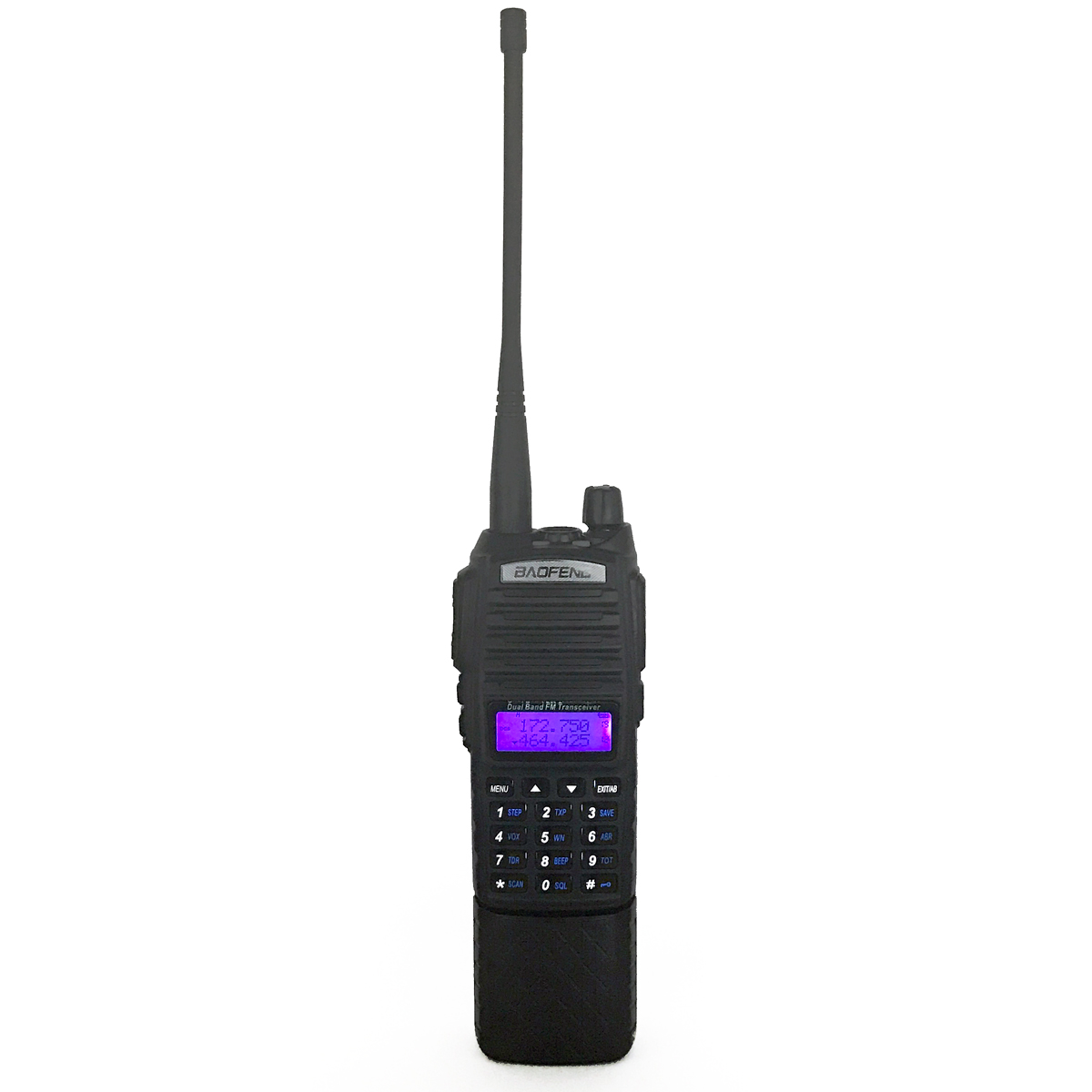

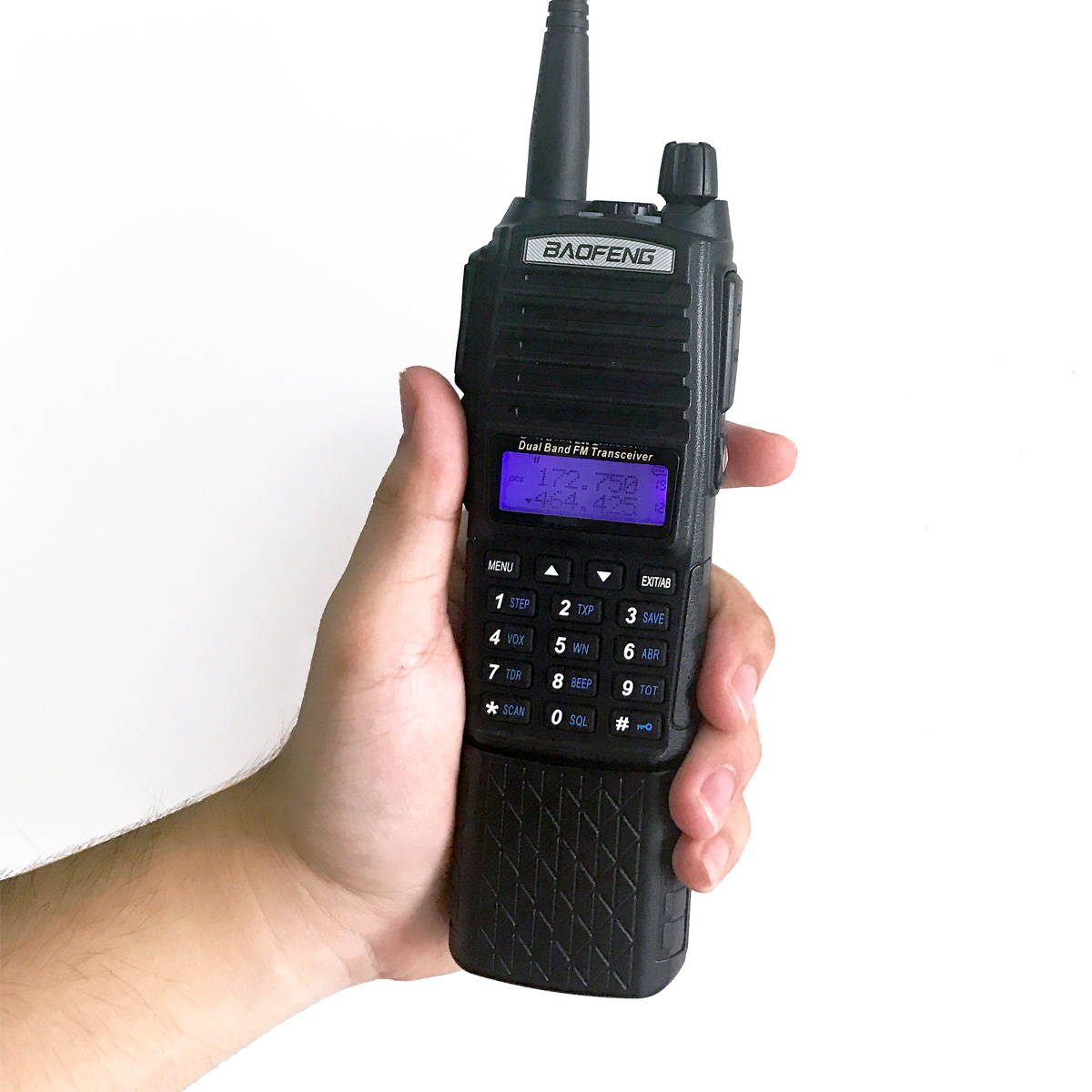

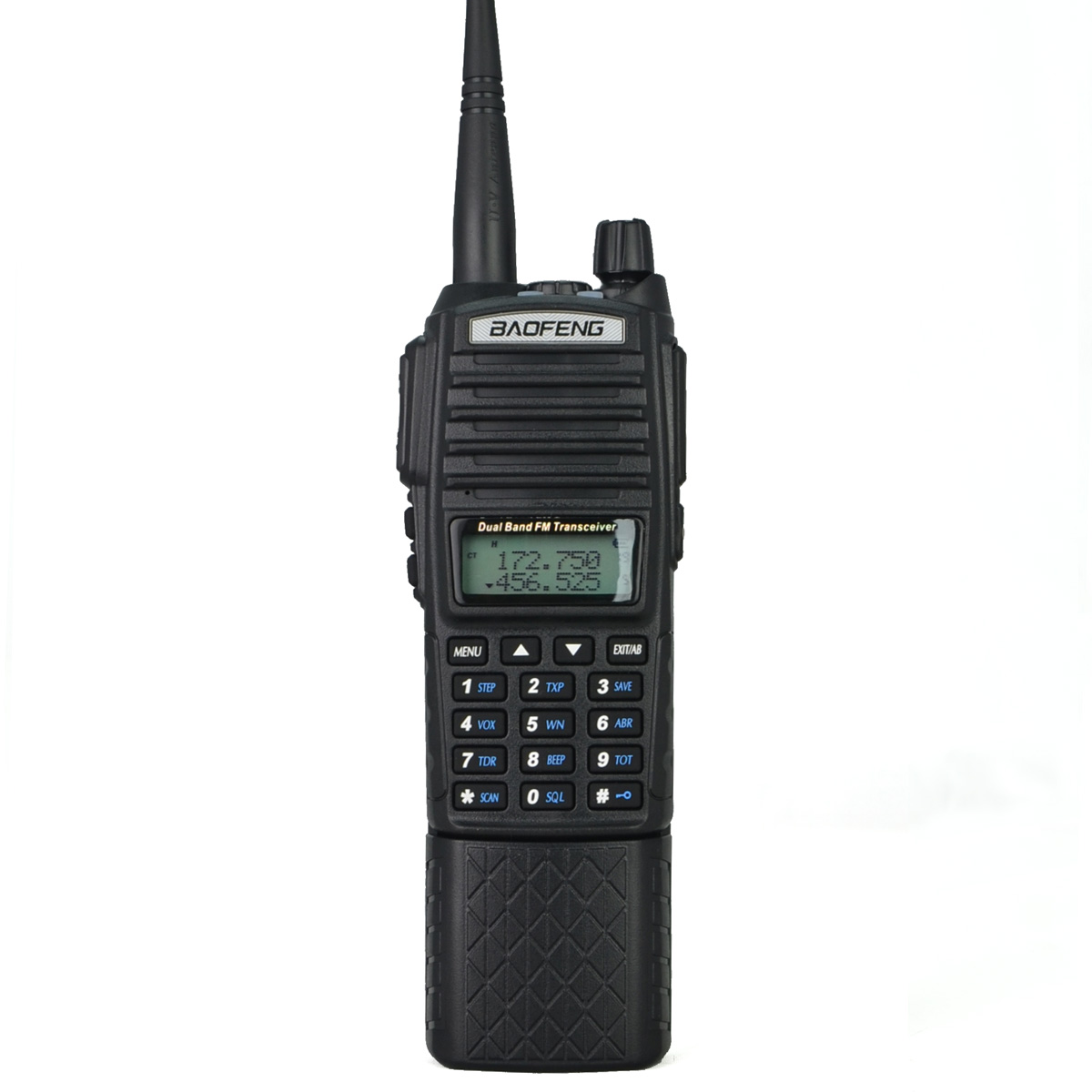

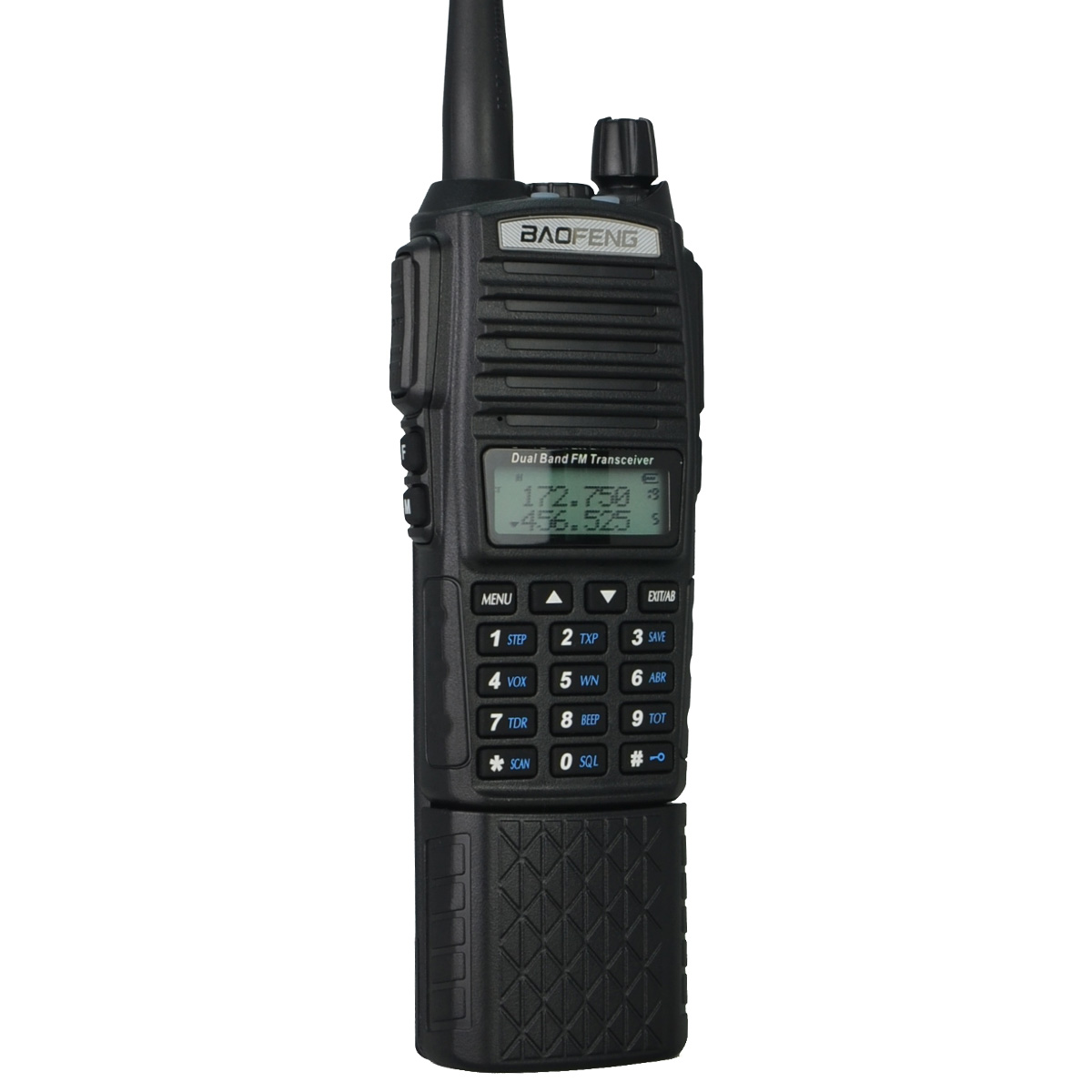

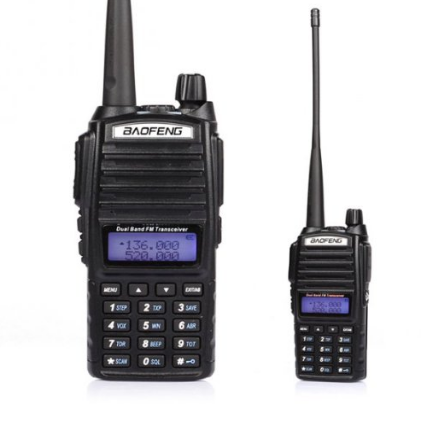

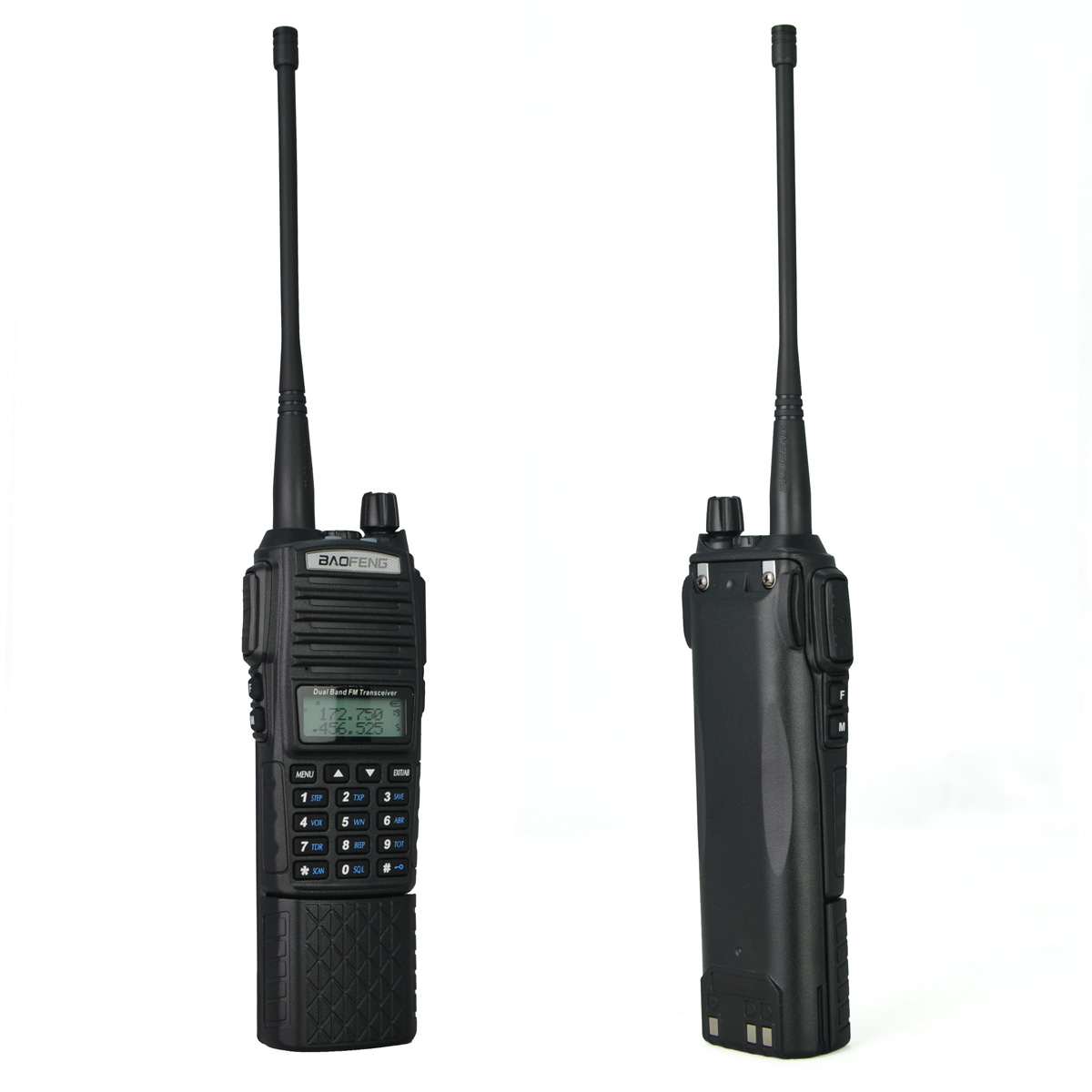

BaoFeng UV-82L Two Way Radio (Black)

    Function:

    • Frequency Range: 136-174 and 400-520MHz, Dual Band, Dual Display, Dual Frequency, Dual Standby
    • A/B band independent operation, 128 groups channels storage, Shortcut menu operation mode
    • VFO and Memory channels scan, Emergency Alarm, Tri-color background light selectable
    • 0~9 grades VOX selectable, PTT and ANI ID, FM radio and 25 stations storage, 1750Hz Brust, Time-out Timer
    • Channel Monitor, Battery Saver, Keypad Lock, Channel Step: 2.5/5/6.25/10/12.5/25KHz, Low Battery Alert, ROGER SET, Emergency Alert

    Product Description

    Features:

    * Dual PTT keys; A/B band independent operation
    * Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable
    * CTCSS & DCS Scanning/ CTCSS & DCS Direct input
    * Emergency Alarm; LED Flashlight; Built-in key lock
    * Tri-color background light selectable; 0~9 grades VOX selectable
    * Battery Saving function; Low Battery Alert; High /Low RF Power switchable

    Specification:

    Memory Channel: Up to 128 channels
    Frequency Stability: 2.5ppm
    Frequency Step: 2.5/5/6.25/10/12.5/20/25kHz
    Antenna Impedance: 50 Ohm
    Supply Voltage: Rechargeable Lithium-Ion 7.4V/3000mAh
    Consumption in Standby: 380mA
    Consumption in Transmission: <=1.4A
    Mode of Operation: Simple or semi-duplex
    Duty cycle: 03/03/54 min (Rx/Tx Standby)

    Transmitter

    RF power: 5W / 1W
    Type of Modulation: FM
    Modulation Mode: 16kF3E / 11kF3E(W/N)
    Maximum Deviation: <=5kHz / <=2.5kHz(W/N)
    Spurious emissions: <-60dB.

    Receiver

    Receiver Sensitivity: 0.2uV(at 12dB SINAD)
    Intermodulation: 60dB.
    Audio Output: 1W
    Maximum Deviation: <=5kHz / <=2.5kHz(W/N)
    Spurious emissions: <-60dB.

    Package Content:

    1x Baofeng UV-82L Two way Radio

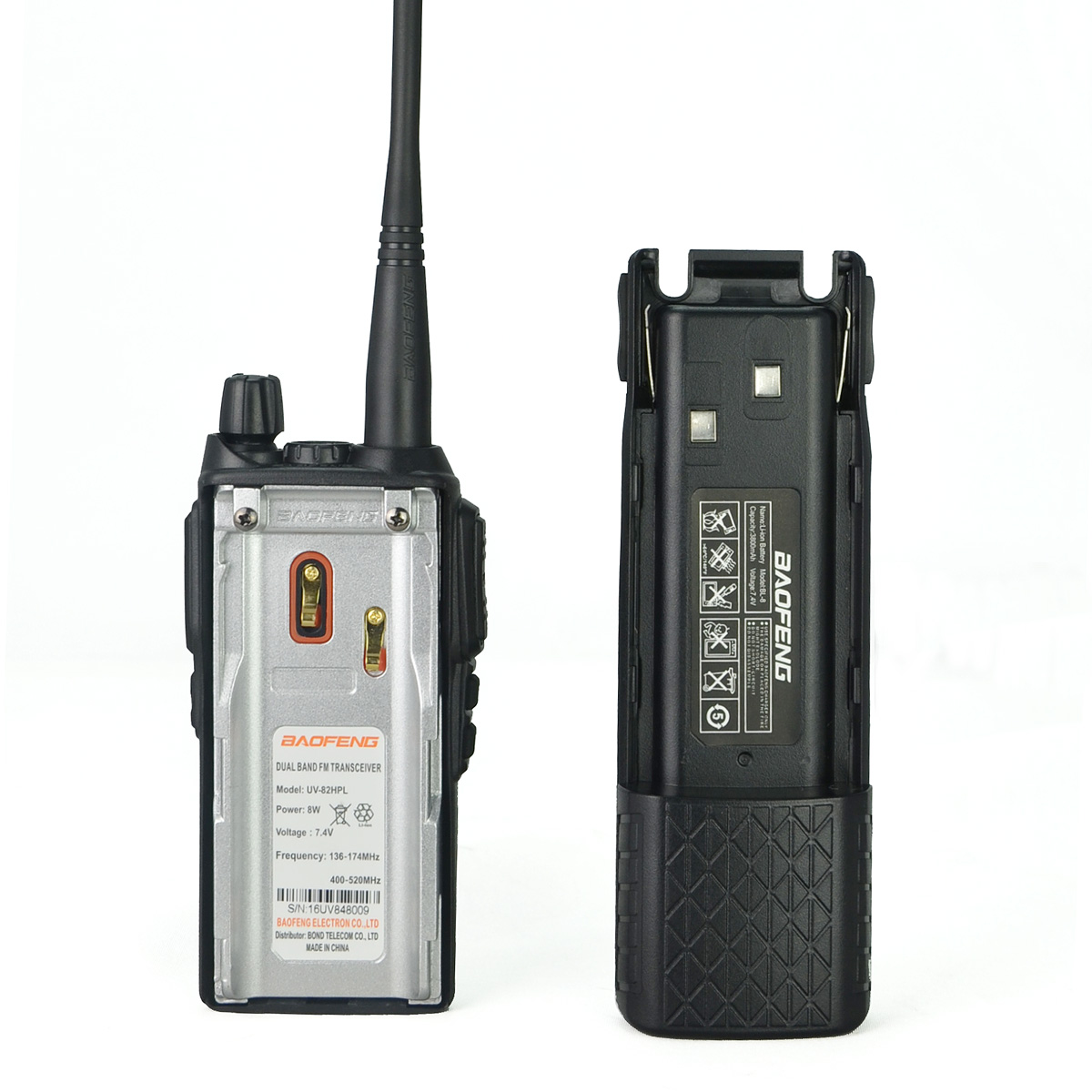

    1x 7.4V 3000mAh Li-ion Battery
    1x 18cm Dual Band Antenna
    1x Power Adapter
    1x Cable
    1x Speaker
    1x Belt Clip
    1x Hand Strap
    1x Battery Charger
    1x User Manual
