Baofeng uv-5ra dual band radio

    Function:

    Product Description

    Baofeng uv-5ra dual band radio

    Dual band handheld transceiver with display function menu on the display “LCD”
    -DTMF encoded

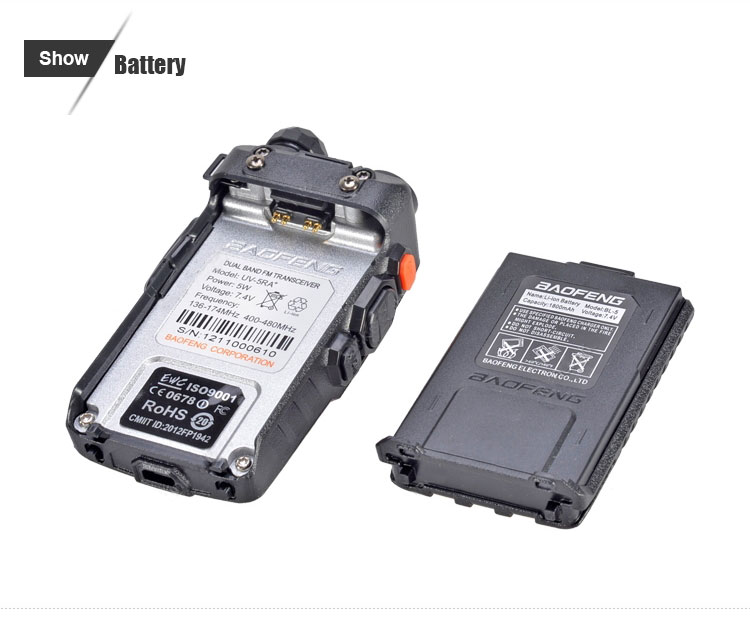

    -Lithium-ion battery with high capacity

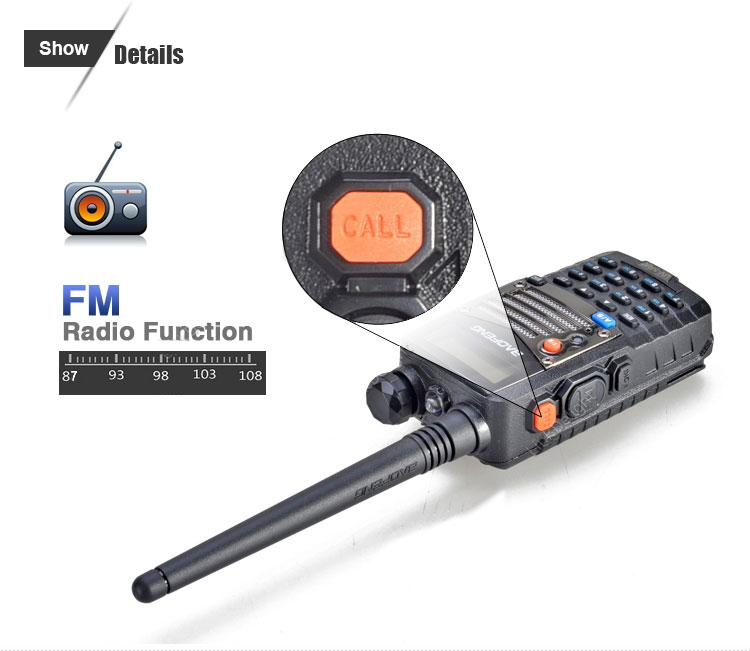

    -FM Radio (65MHz-108MHz)
    -210 DCS 50 CTCSS
    -Alarm function
    -Function “VOX”
    -Dual Watch Dual reception
    -Selectable Frequency Step 2.5/5/6.25/10/12.5/25 kHz
    -Battery Save
    -Timer transmission “TOT”programmable
    -PC programming

    Baofeng uv-5ra dual band radio Specification:
    GENERAL
    Frequency Range:VHF:136-174 MHz/UHF:400-520 MHz
    Channel Capacity:128
    Channel Spacing:2.5/5/6.25/10/12.5/25KHz
    Operated Voltage:7.4V
    Standard Battery:1500mAh
    Battery Life:10 hours
    Frequency Stability :2.5ppm(-20 º C ~+60 º C )
    Operated Temperature:-30 º C ~+60 º C
    Antenna Impedance:50 Ω
    Dimensions:58*110*35mm
    Weight:About205g

    Baofeng uv-5ra dual band radio TRANSMITTER
    RF Power Output:4W/1W
    Modulation:F3E
    Spurious Emission:<-60dB
    FM Noise(N/W):≥-45dB≥-40dB
    Audio distortion:Less than10.%
    Adjacent Channel Power:≤-65dB≤-60dB
    Max Frequency Deviation:5KHz (N)/ 2.5KHz (W)
    Frequency Error:500Hz
    Modulation Distortion:0.1KHz (300-3000KHz)
    Transmitting Current:About1.4A

    Baofeng uv-5ra dual band radio RECEIVER
    Sensitivity (12dB SINAD):-122dBm
    Spurious Response Rejection:65dB
    FM Ham & Noise:40dB(N)/45dB(W)
    Audio Power Output @ 8Ω :1W
    Audio Distortion:≤10%
    Receiver Current:≤380mA

    more BAOFENG

    Baofeng uv-5ra dual band radio
