Baofeng UV-5R Dual Band Radio

    Function:

    Product Description

    Baofeng UV-5R Dual Band Radio

    The Baofeng UV-5R Dual Band Radio is a compact F.C.C. Part 90 hand held transceiver providing 4 watts in the frequency range of 136-174 MHz and 400-480 MHz. It is a compact, economical HT that includes a special VHF receive band from 65 – 108 MHz which includes the regular FM broadcast band. Dual watch and dual reception is supported. You get up to 128 memories. Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock and built in flashlight. Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz. RF power may be selected at 4 or 1 watts.

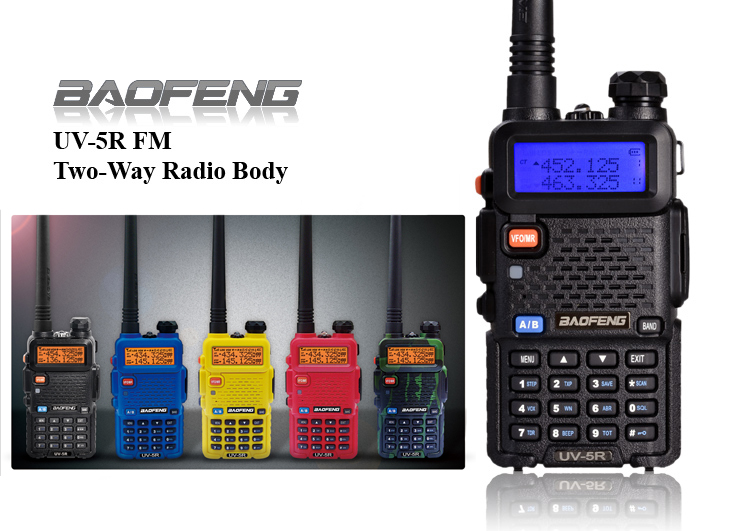

    uv-5r ham radio

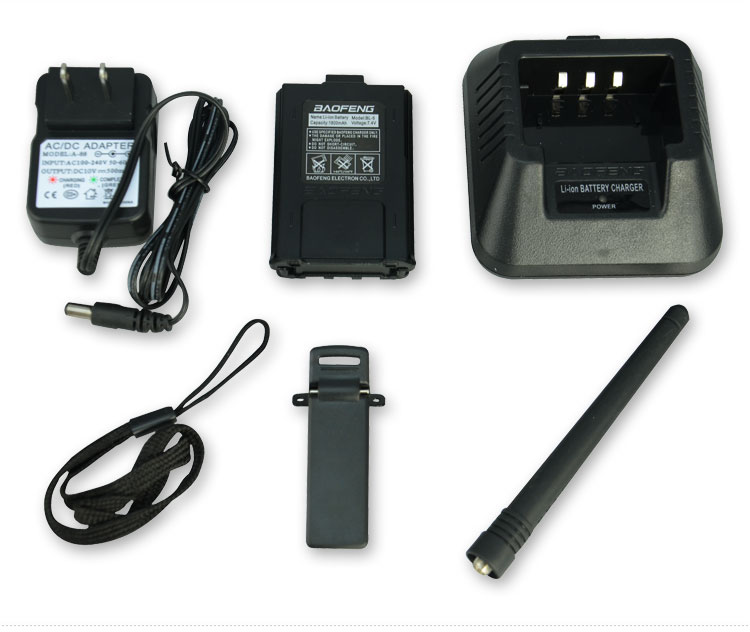

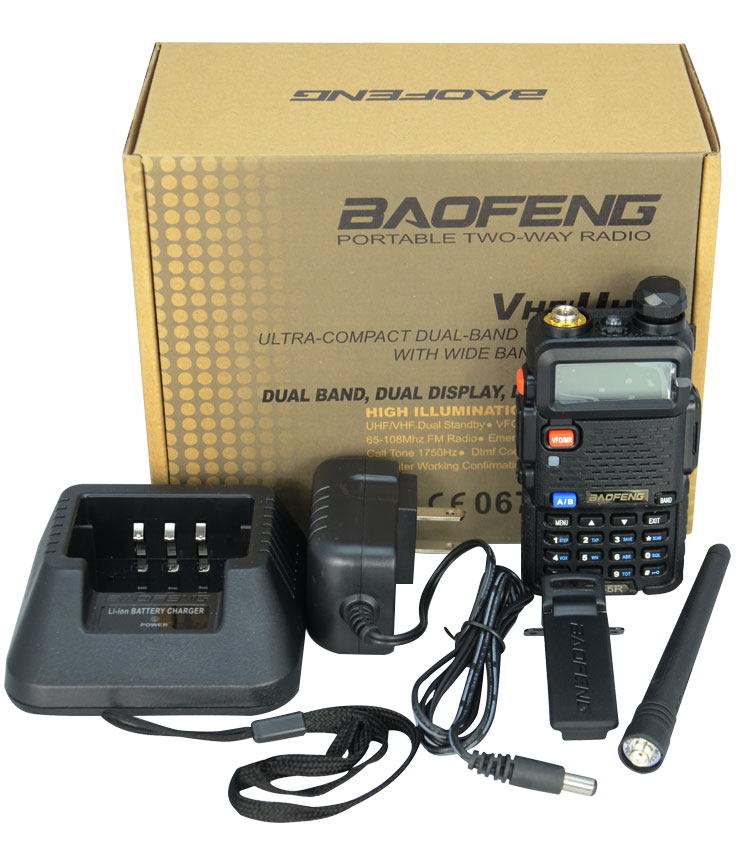

    This radio comes with ANT5 SMA-J flexible antenna, BL-5 Li-ion battery (7.4V 1800 mAh), belt clip, wrist strap, AC adapter (8.4V 600ma) and drop-in charging tray. Please note that this radio features a male SMA antenna jack.

    http://www.youtube.com/embed/56PvtAqacz8?html5=1Features of Baofeng UV-5R Dual Band Radio:
    1.Dual Watch
    2.Priority Channel Scanning
    3.VOX/FM Radio Built-in
    4.Emergency Alarm
    5.Call Tone (1750Hz)
    6.Battery Save
    7.High Illumination Flashlight

    Technical Specifications of Baofeng UV-5R Dual Band Radio:
    General
    Frequency Range:VHF136-174MHz UHF400-480MHz
    Channel Capacity:128
    Operating Voltage:7.4V DC ±15%
    Antenna Impedance:50Ω
    Channel Spacing:2.5/6.25/10/12.5/20/25kHz
    Working Temperature:-20 °C – +60 °C
    Frequency Stability:±2.5 ppm
    Size (Without Antenna):110(W)mmx60(L)mmx36mm(D)
    Weight(With Battery):about 250g
    Battery Capacity:1800 mAh(Li-ion)
    Battery Life(5-5-90 duty cycle) :About 12 hours

    Transmitter
    RF Power Output:4W/1W
    Modulation Type :F3E
    Audio Distortion:≤ 5%
    Transmitting Current:< 1.3A
    FM Noise :45dB(W)/42dB(N)
    Spurious Emission:65dB

    Receiver
    Sensitivity(12Db SINAD):≤0.20μV
    Selectivity:60dB/55dB
    intermodulation:≥65dB
    Adjacent Channel Selectivity:≥65dB
    Spurious Response:≥60dB
    FM Noise:30dB/40dB
    Audio Power Output: 1000mW
    Audio Distortion:≤5%

    Baofeng UV-5R Dual Band Radio

    Baofeng UV-5R Dual Band Radio
