Baofeng UV-3R

    Function:

    Product Description

    Baofeng UV-3R

    http://www.youtube.com/embed/https://youtu.be/AxLox-2Pku8?html5=1Baofeng UV-3R Specification:
    1.Dual Watch
    2.Priority Channel Scanning
    3.VOX/FM Radio Built-in
    4.Emergency Alarm
    5.Call Tone (1750Hz)
    6.Battery Save
    7.High Illumination Flashlight

    General
    Frequency Range
    VHF:136-174MHz UHF:400-470MHz
    Channel Capacity:99
    Operating Voltage:3.7V
    Antenna Impedance:50Ω
    Channel Spacing:5/6.25/10/12.5/20/25kHz
    Working Temperature:-20 °C – +60 °C
    Frequency Stability:±2.5 ppm
    Dimensions (Without Antenna):99(W)mmx55(L)mmx29mm(D)

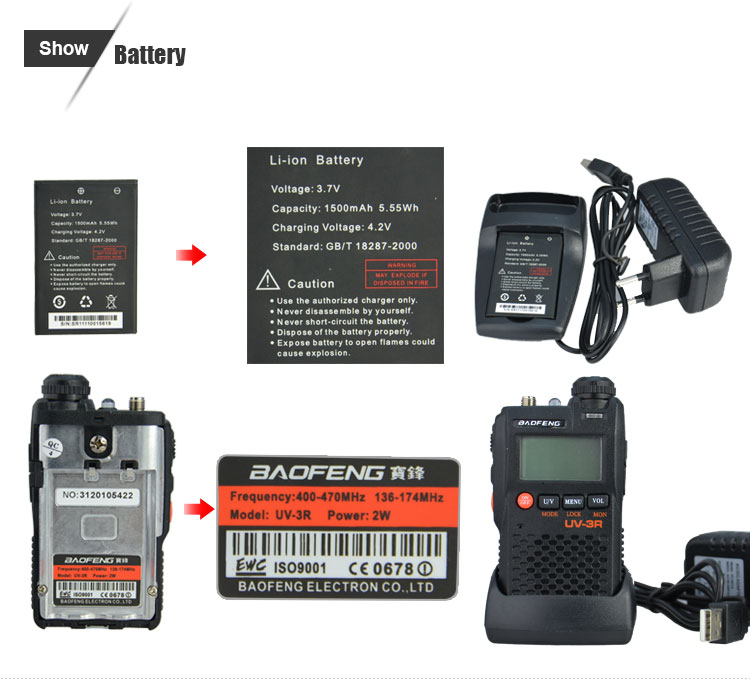

    Battery Capacity:1500 mAh(Li-ion)
    Battery Life(5-5-90 duty cycle) :About 10 hours

    Transmitter
    RF Power Output:4W/1W
    Modulation Type :F3E
    Audio Distortion:≤ 5%
    Transmitting Current:< 1.3A
    FM Noise :45dB(W)/42dB(N)
    Spurious Emission:65dB

    Receiver
    Sensitivity(12Db SINAD):≤0.20μV
    Selectivity:60dB/55dB
    intermodulation:≥65dB
    Adjacent Channel Selectivity:≥65dB
    Spurious Response:≥60dB
    FM Noise:30dB/40dB
    Audio Power Output:1000mW
    Audio Distortion:≤5%

    baofeng uv-3r
    baofeng uv-3r
    baofeng uv-3r
